Arizona Tracks

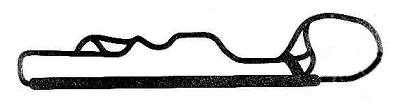

Firebird Main (additional track information) 1.6 miles (Weather Report)

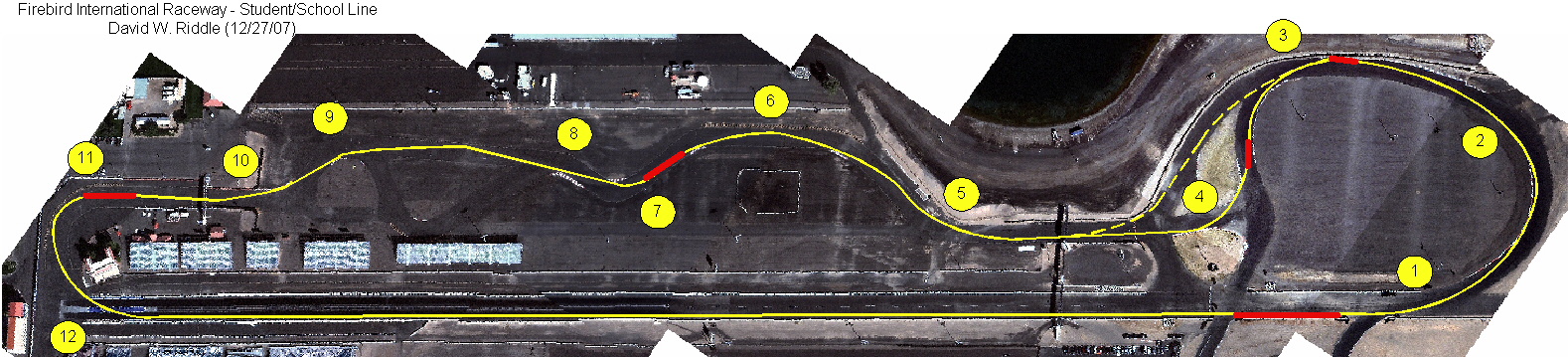

Aerial Photo with the “line” indicated
| Engine Type | Engine Type | Engine Type | Engine Type |
| TaG | Shifter | ||
| Engine: Biland SA-250 RPM: 12010 Ratio: 4.35 Tire Dia.: 34.5 inches Rotax Ratio: 4.50 to 4.63 |
Honda Engine: 18 Axle: 22 RPM: 11900 Honda Engine: 19 Axle: 23 RPM: 13300 |
Firebird East (additional track information) 1.25 miles

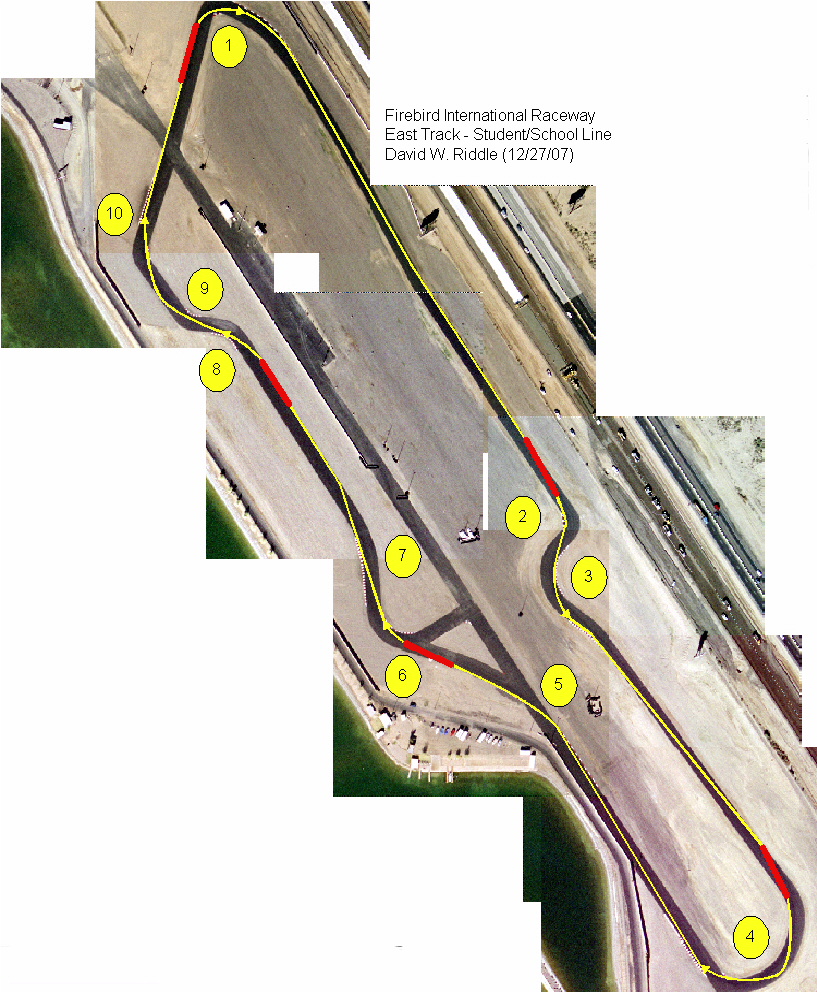

Aerial Photo with the “line” indicated
| Engine Type | Engine Type | Engine Type | Engine Type |
| TaG | Shifter | ||
| Engine: Biland SA-250 RPM: 12150 Ratio: 4.70 Tire Dia.: 34.5 inches Rotax Ratio: 4.86 to 5.00 |
Honda 125 Moto Engine Sprocket: 18 Axle Sprocket: 23 |
Firebird West (additional track information) 1.1 miles

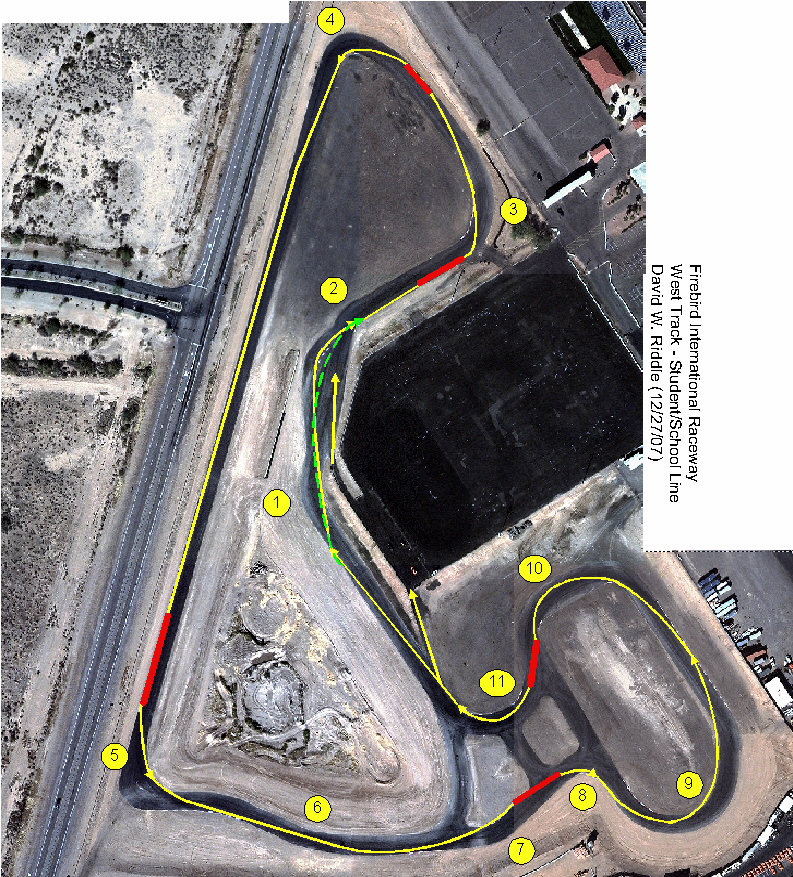

Aerial Photo with the “line” indicated
| Engine Type | Engine Type | Engine Type | Engine Type |
| TaG | 125 Shifter | ||
| Engine: Biland SA-250 RPM: mid 12000s Ratio: 4.70 Tire Dia.: 34.5 inches Leopard Engine Sprocket: 12 Axle Sprocket: 75 Ratio: 6.25 RPM: 15125 Rotax Ratio: 4.86 to 5.21 |
Honda CR125 Engine: 18 Axle: 22 |
Phoenix International (additional track information)

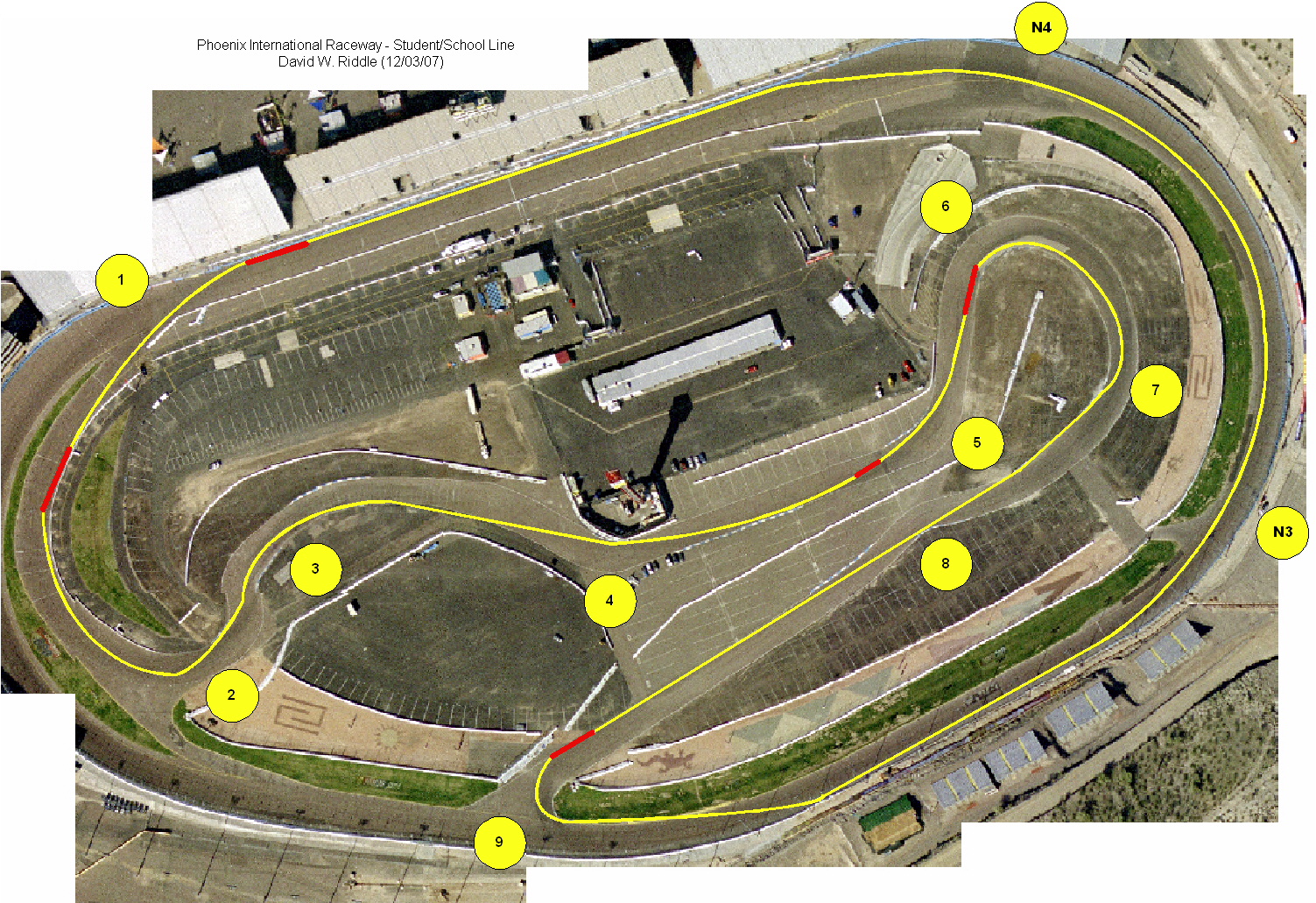

Aerial Photo with the “line” indicated
| Engine Type | Engine Type | Engine Type | Engine Type |
| TaG | Shifter | ||
| Rotax Ratio: 4.50 to 4.71 |

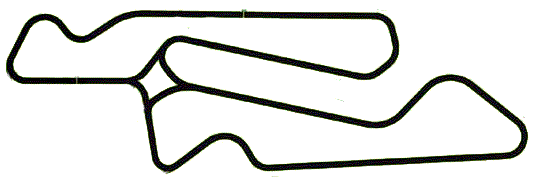

Arizona Motorsports Park (additional track information)

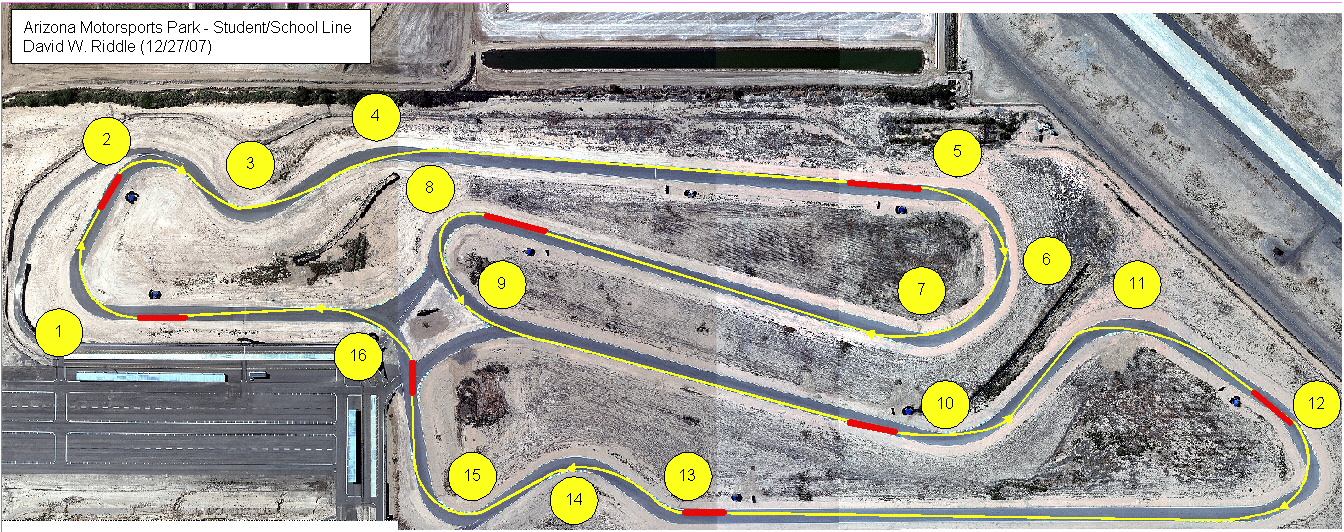

Aerial Photo with the “line” indicated
| Engine Type | Engine Type | Engine Type | Engine Type |
| TaG | Shifter | ||
| Rotax Ratio: 4.25 to 5.00 |
